General Description |
Miniature 3 way, 2 position brass pilot valves. Air, manual or mechanically operated. Normally closed operation. Universal versions available.
- Compact. High flow. Sealed mid position during transition.
- Pilot operation of larger directional control valves or direct operation of single acting cylinders.
|
Operating Fluids |
Compressed air
Filtered and lubricated or non lubricated up to 10 bar (145 psi). ISO VG37 mineral oil (or equivalent) is recommended for use at normal ambient temperatures in lubricated systems. |
Technical Data |
Cv (Kv)
0.26 (3.7) |
Stroke
Nominal stroke of valve spindle
3.25mm
Additional over travel
0.75mm approximately |
Working Temperature
-10°C to +75°C (15°F to 167°F) |
Operating effort
at 6.3 bar (90 psi) to atmosphere
1323M2G-BM1B 25N
1323M20-BM1B 0.33NM
1324M2G-BM1B 0.33NM
1323M2G5BM1B* 25N
1323M77-BM1B 55N
1323M27-BM1B* 25N
1323M2L-BM1B 25N
1323M26-BM1B 25N
1323M28-BM1B 15N |
Ports
1/8" BSP
X1/8"BSP pilot ports |
Pressure Ratings
Normally closed
0.3 to 10 bar (4.4 to 100 psi)
Normally open
0.3 to 7 bar (4.4 to100 psi)
Pilot air - air operated
2 bar (29 psi)
Pilot air - diaphragm operated
0.24 bar (3.5 psi) |
Flow
at 7 bar (100 psi) to atmosphere
6.7 dm3/sec (14.2 SCFM) |
|
Construction Materials |
Body
Brass |
Seals
Nitrile |
Spindle and Springs
316 Stainless steel |
|
|
|
|
|
General Description |
A range of heavy duty 4/2 and 4/3 pilot solenoid operated 'Fluoslide' Linear and Semi-rotary directional control valves in brass or aluminium for use on compressed air.
- Linear & Semi-rotary Heavy duty. High flow.
- Compact.
|
Operating Fluids |
Compressed air
Filtered and lubricated compressed air up to 7 bar (100 psi). ISO VG37 mineral oil(or equivalent) is recommended for use at normal ambient temperatures.
Liquids
Oil or water up to 20 bar (300 psi) (details on application). |
Technical Data |
Solenoid
Fully encapsulated, Class F coil fitted with 3 pin socket connector to DIN43650A with gland screw at cable entry. |
Mounting Styles
All popular styles |
Working Temperature
-20°C to +70°C (-4°F to +158°F) |
Cv (Kv)
Linear/ Rotary
1/8" - 0.15 (2.3)
1/4" - 1.06 ( 15) / 0.60 (9.0)
3/8" - 1.70 ( 24) / 0.90 (13.5)
1/2" - 2.60 ( 49) - 2 position
2.30 ( 33) - 3 position
3/4" - 5.00 ( 71)
1" - 8.00 ( 114) |
Ports
1/8", 1/4", 3/8", 1/2", 3/4", 1" BSP |
Pressure Ratings
Double operated (Linear)
up to 7 bar (100 psi)
Single operated, spring return (Linear)
4 to 7 bar (58 to100 psi)
Semi-rotary 10 bar (145psi)
Valves for pressures up to 20 bar (300 psi) and for vacuum are also available - details on application |
Flow
at 7 bar (100 psi) to atmosphere
1/4" - 30 dm¨°/sec ( 64 SCFM)
3/8" - 54 dm¨°/sec (114 SCFM)
1/2" - 70 dm¨°/sec (148 SCFM) 2 pos
65 dm¨°/sec (138 SCFM) 3 pos
3/4" - 156 dm¨°/sec (331 SCFM)
1" - 200 dm¨°/sec (424 SCFM) |
|
Construction Materials |
Body
1/8", 1/4", 3/8", 1/2" - Brass
3/4", 1" - Alumimum |
Slide
Graphite filled PTFE |
Spool
Anodised aluminium alloy |
Seals
Nitrile (Fluoroelastomer to special order) |
Spindle and springs
Stainless steel |
Spring
Heat treated carbon steel |
|
|
|
|

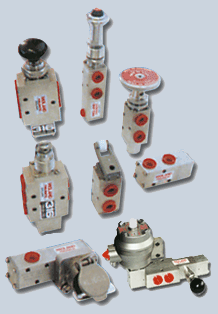

General Description |
A range of compact 3/2 and 5/2 solenoid, pilot, mechanical or manually operated spool valves in 316 stainless steel for use on gases and liquids.
- Hazardous area solenoids. Coil with 316 or aluminium housing. Closed centre. Atex Certification. CENELEC approvals. UL LIST CSA approvals
- Lightweight.
|
Operating Fluids |
Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases.
Sour gas option available |
Technical Data |
Solenoid
EExd
EExme
EExia
Nema 7 & 9
Encapsulated Non-Hazardous |
Cv (Kv)
3/2 valves 1.0 (15)
5/2 valves 1.2 (17) |
Working Temperature
Valve only
-20°C to +180°C (-4°F to +356°F)
Solenoid - Ambient temperature
-20°C to +65°C (-4°F to +149°F) |
Ports
1/4"NPT (BSP option available) |
Pressure Ratings
Single solenoid valves
3 to 12 bar (45 to174 psi)
Double solenoid valves
2 to 12 bar (30 to174 psi) |
Flow
Maximum flow at 6 bar (87 psi),
X1 bar (14.5 psi) differential
X3/2 valves - 1000 L/min (35.3 SCFM)
X5/2 valves - 1200 L/min (42.4 SCFM) |
|
Construction Materials |
Body/ Spool
Stainless steel AISI 316L to NACE MR-01-75 |
Seals
Fluoroelastomer |
Spring
316 Stainless steel |
Solenoid
Flameproof, increased encapsulation, intrinsically safe and non-hazardous solenoid coilsXto CENELEC, ATEX, UL Listed and CSA Certified. |
|
|
|
|
General Description |
A range of compact 3/2 and 5/2 solenoid, pilot and manually operated spool valves in 316 stainless steel for use on gases and liquids.
- Hazardous area solenoids. Coil with 316 or aluminium housing. Block before bleed. Atex Certification. CENELEC approvals.
- UL LIST CSA approvals
|
Operating Fluids |
Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases. Sour gas option available (details on application)
Liquids
Low pressure hydraulic, mineral oil or water. |
Technical Data |
Solenoid
EExd
EExme
EExia
Nema 7 & 9
Encapsulated Non-Hazardous |
Cv (Kv)
3/2 valves 3.5 (53)
X5/2 valves 3.5 (53) |
Working Temperature
Valve only
-20°C to +180°C (-4°F to +356°F)
Solenoid - Ambient temperature
-20°C to +65°C (-4°F to +149°F) |
Ports
1/2"NPT (BSP option available) |
Pressure Ratings
(gases & liquids)
Single solenoid valves
3 to 12 bar (45 to174 psi)
Double solenoid valves
2 to 12 bar (30 to174 psi) |
Flow
Maximum flow at 6 bar (87 psi),
X1 bar (14.5 psi) differential
3/2 valves - 3500 L/min (123 SCFM)
5/2 valves - 3500 L/min (123 SCFM) |
|
Construction Materials |
Body/ Spool
Stainless steel AISI 316L to NACE MR-01-75 |
Seals
Fluoroelastomer |
Spring
316 Stainless steel |
Solenoid
Flameproof, increased encapsulation, intrinsically safe and non-hazardous solenoid coilsXto CENELEC, ATEX, UL Listed and CSA Certified. |
|
|
|
|
General Description |
A range of compact 3/2 pilot solenoid and pilot operated poppet valves in 316 stainless steel for use on gases.
- High flow. Hazardous area solenoids. Coil with 316 housing. Atex Certification. CENELEC - UL approvals. Lightweight.
- Low temperature range.
|
Operating Fluids |
Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases. Sour gas option available (details on application)
Liquids
Low pressure hydraulic, mineral oil or water (details on application). |
Technical Data |
Solenoid
EExd
EExme
EExia
Nema 729
Encapsulated Non-Hazardous |
Cv (Kv)
1/4" - 1.75 (25)
3/8" - 2.2 (31)
1/2" - 4.00 (57)
3/4" - 10.2 (146)
1" - 15.0 (214)
1 " - 20.0 (286)
1" - 28.0 (400) |
Working Temperature
Valve only
-20°C to +180°C (-4°F to +356°F)
Solenoid - Ambient temperature
-20°C to +65°C (-4°F to +149°F)
Low temperature version
-50oC to 90oC (-58oF to 194oF) |
Ports
1/4" - 11/2"NPT (BSP optionavailable) |
Pressure Ratings
(gases & liquids)
X3 to 12 bar (45 to174 psi) |
Flow
Maximum flow at 6 bar (87 psi), 1 bar (14.5 psi) dif differential
1/4" - 2668 L/min ( 94 SCFM)
3/8" - 3521 L/min ( 124 SCFM)
1/2" - 6402 L/min ( 226 SCFM)
3/4" - 16005 L/min ( 565 SCFM)
1" - 24008 L/min ( 848 SCFM)
1 " - 32010 L/min (1130 SCFM)
1" - 44814 L/min (1583 SCFM) |
|
Construction Materials |
Body
Stainless steel AISI 316L
to NACE MR-01-75 |
Seals
1/4", 3/8" and 1/2" Fluoroelastomer
3/4", 1", 1 " and 1" Nitrile |
Spring
316 Stainless steel
Poppet
Stainless steel AISI 316L
to NACE MR-01-75
|
Solenoid
Flameproof, increased encapsulation, intrinsically safe and non-hazardous solenoid coilsXto CENELEC, ATEX, UL Listed and CSA Certified. |
|
|
|
|
General Description |
A range of heavy duty 4/2 + 4/3 solenoid, pilot manually operated 'Fluoslide' directional control valves in stainless steel for use on gases.
- Heavy duty. High flow. Critical applications.
- Hazardous area solenoids.
|
Operating Fluids |
Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases. Sour gas option available
Liquids
Low pressure hydraulic, mineral oil or water (details on application). |
Technical Data |
Solenoid
EExd
EExme
EExia
Nema 729
Encapsulated Non-Hazardous |
Cv (Kv)
1/4" - 1.96 (28)
3/8" - 2.25 (32)
1/2" - 3.16 (45) |
Working Temperature
Valve only
-20°C to +180°C (-4°F to +356°F)
Solenoid - Ambient temperature
-20°C to 65°C (-4°F to 149°F) |
Ports
1/4" - 1/2"NPT (BSP optionavailable) |
Pressure Ratings (gases)
Double solenoid operated
3 to 10 bar (43.5 to145 psi)
Single solenoid, spring return
4 to 10 bar (58 to145 psi)
Note: For pressures below 6 bar (87 psi) the 'red' spring must be removed. |
Flow
Maximum flow at 6 bar (87 psi), 1 bar (14.5 psi) dif differential
1/4" - 1810 L/min ( 64 SCFM)
3/8" - 2070 L/min ( 73 SCFM)
1/2" - 2910 L/min (103 SCFM) |
|
Construction Materials |
Body /Slide carrier /Springs
Stainless steel AISI 316L to NACE MR-01-75 |
Seals
Nitrile
|
Slide
Graphite filled PTFE |
Solenoid
Flameproof, increased encapsulation, intrinsically safe and non-harazardous solenoid coils
Xto CENELEC, ATEX, UL Listed and CSA Certified. |
|
|
|
|
General Description |
A range of direct acting 3/2 universal hazardous area solenoid valves for the oil, gas and petrochemical industries.
- Lightweight. Manual override, reset and latch versions. EExd IIC T6. 316 Stainless steel throughout. Atex Certification.
- Universal operation.
|
Operating Fluids |
Gases
Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases. Sour gas option available
Liquids
Low pressure hydraulic, mineral oil or water (details on application). |
Technical Data |
Ports
1/4", 3/8", 1/2"NPT (BSP option available)
Orifice
8.8mm (0.35")
Cv (Kv)
0.86 (12.25) |
Flow
Maximum at 6 bar (87 psi), 1 bar (14.5 psi) differential
3/2 valves - 1000 L/min (35.3 SCFM)
5/2 valves - 1200 L/min (42.4 SCFM) |
Working Temperature
Ambient temperature
-20°C to 40°C (-4°F to 104°F)
|
Pressure Ratings (gases)
Maximum body pressure
40 bar (580 psi)
Maximum operating pressure differential
10 bar (145 psi) |
|
Construction Materials |
Body/Spindle/Springs
Stainless steel AISI 316L to NACE MR-01-75
Slide
Graphite filled PTFE
Seals
Nitrile (Buna N) options Fluoroelastomer and EPDM |
Solenoid specification
Flameproof EExd IIC T6 to CENELEC
Housing
316 Stainless steel
Coil voltages
12v, 24v DC
24v, 110v, 220v AC (50/60 Hz)
Voltage tolerance
+10% to -15%l
Power consumption
DC
6 Watt power reduction module
AC
AC units fitted with DC rectifier |
|
|
|
